Helix Noise — divergence-free flow fields

Give anything the motion of a fluid

One function tells you which way things drift at any point in space — and it always moves like water: swirling, folding, never clumping. This whole page is one field, running in JavaScript — and identical in Python, Rust, and shaders.

Pick a current

…or drag anywhere to stir the current yourself.

▶ See it move 3-D sandbox Docs GitHub ↗ npm ↗

What you're looking at

You're standing inside an invisible current that fills all of space.

Ask it about any point and it tells you which way things drift there — so you can carry smoke, water, particles, hair, or a whole crowd along that flow and it looks alive. No fluid solver, no bake, no grid to fill. The current above is the real library, running as you read.

The reason it feels like a fluid is one guarantee: it's divergence-free — nothing piles up and nothing vanishes, exactly like real, incompressible water. That's why tracers swirl and fold instead of collapsing into blobs the way ordinary noise makes them. Three qualities shape the look — how big the swirls are, which way they spin, and whether it reads as calm noise or organized eddies — and each current above is one blend of the three.

For the curious: the field is a grid-free sum of divergence-free helical (Beltrami) modes; the three qualities are spectral slope, helicity, and phase coherence. Full details in the docs.

Why it's built this way

Real physics underneath, art direction on top.

Incompressible

Moves like real fluid

Nothing piles up, nothing vanishes — ink stretches and folds but never tears, and particles never clump into blobs.

divergence-free — exact to machine precision

Art-directable

Qualities you can dial

Set the size of the swirls, which way they spin, and how organized the flow reads. Handedness and structure are things ordinary curl-noise simply can't do.

slope · helicity · coherence

Grid-free

Works anywhere, endless

Ask about any point in space — no grid to fill, no boundary, no tiling seam, no simulation to step. It just answers, in constant time.

one call is O(modes)

CPU & GPU

Same field on the GPU

One call drops the exact field into your shader, matching the CPU version bit-for-bit — so a million particles is no problem. Zero dependencies.

field.glsl() · WASM SIMD batches

See it move

One field, every renderer.

webgl2 · analytic

Living nebula

No bake — rays march the field itself. Density = vorticity, colour = handedness.

webgl2 · bake3D

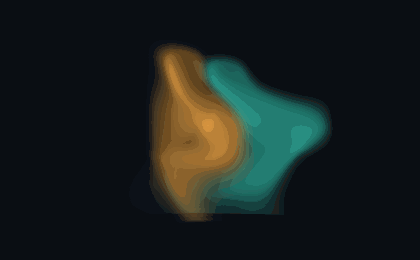

Volumetric smoke

A 48³ dye volume advected and raymarched with self-shadowing. Draw it with the pointer.

canvas · bake2D

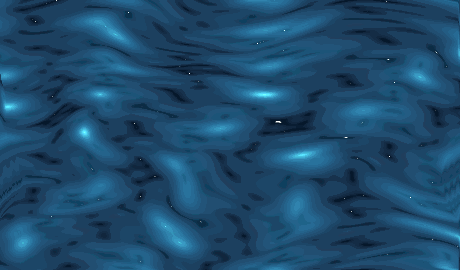

Flowing water

Ripples bent along the streamlines, with caustics and moving sun-glints.

webgl2 · glsl

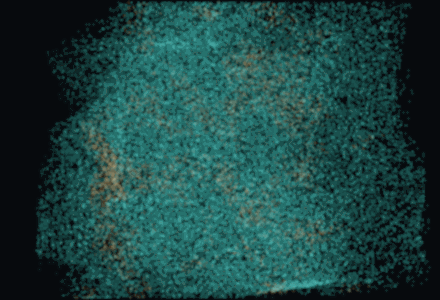

A dense swarm of particles advected through the flow field

A million particles

1–4 M particles advected entirely on the GPU — zero CPU field calls per frame.

three.js · sampleUW

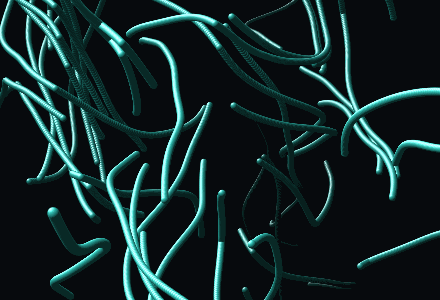

Vortex tubes

Streamtubes coloured by helicity. At ±1 every tube corkscrews the same way.

webgl2 · anisotropy

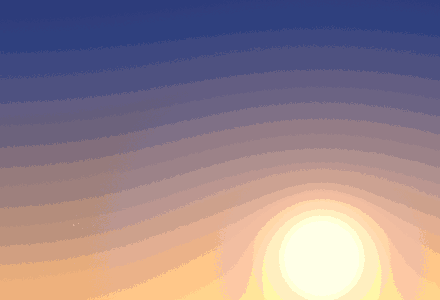

Amber cirrus wisps combed along a sheared jetstream

Jetstream cirrus

One dial shears an advected-dye sky — wisps combed along the jet, bands across it.

All 14 demos — three.js · p5 · raw WebGL2 · audio-reactive →

One algorithm, four languages

The same field, wherever you build.

Pick a current in the browser above — then take that exact field to your language of choice. Every port is generated from one shared spec and checked against the JavaScript reference: for the same seed and settings they produce bit-identical output to ~1e-15 — machine precision. Not a lookalike, the same field.

JavaScript / TS

The reference

Spectral + atom engines, boundaries, GLSL export, a WASM SIMD batch kernel. Runs the field on this page. Zero dependencies.

npm install helix-noise · docs →

Python

numpy-native

The spectral engine with vectorized batch sampling — for scientific viz, generative art, and synthetic flow data.

pip install helix-noise · docs →

Rust

Zero-dependency crate

The spectral engine as a lean, WASM-friendly crate — for engines, high-performance procedural work, and native tools.

cargo add helix-noise · docs →

Shaders

GPU, engine-agnostic

A generator that emits ready-to-paste GLSL, HLSL, WGSL, and Godot — for Shadertoy, Unity, Unreal, Godot, and WebGPU.

generate.py → glsl · hlsl · wgsl · docs →

Get it running

In your project in two lines.

# zero runtime deps · ESM · CJS · IIFE · TS types (or a CDN <script>)
npm install helix-noise

import { create } from "helix-noise";
const field = create({ helicity: 0.8, coherence: 0.5 });
const [ux, uy, uz] = field.sample(x, y, z);   // divergence-free, anywhere

# numpy-native, vectorized batch sampling
pip install helix-noise

from helix_noise import create
field = create(helicity=0.8, coherence=0.5)
u = field.sample(x, y, z)                # divergence-free, anywhere

// zero-dependency crate, WASM-friendly
cargo add helix-noise

use helix_noise::{HelixField, HelixOptions};
let field = HelixField::new(HelixOptions { helicity: 0.8, coherence: 0.5, ..Default::default() });
let u = field.sample(x, y, z);              // divergence-free, anywhere

# emit a self-contained shader for your target (glsl · hlsl · wgsl · godot)
python generate.py --target glsl --helicity 0.8 > helix.glsl

// then, in your shader:
vec3 u = helixNoise(p);                    // divergence-free, anywhere
